1. Why Software Dimming Fails OLED Displays

Common third-party screen dimming utilities create a transparent black fullscreen window with the WS_EX_LAYERED and WS_EX_TRANSPARENT flags. While this makes the screen look darker, it is a catastrophic illusion for OLED hardware:

• No Voltage Reduction: The display panel's internal power supply and LED driver circuits continue operating at full operating voltage and nominal diode temperatures.
• GPU Overhead: Forces the Desktop Window Manager (DWM) to blend the translucent surface every refresh cycle (120Hz-240Hz), burning unnecessary laptop battery.
• Fullscreen Conflicts: Causes window focus stealing and HDR tone-mapping corruption in professional color grading software and 3D games.

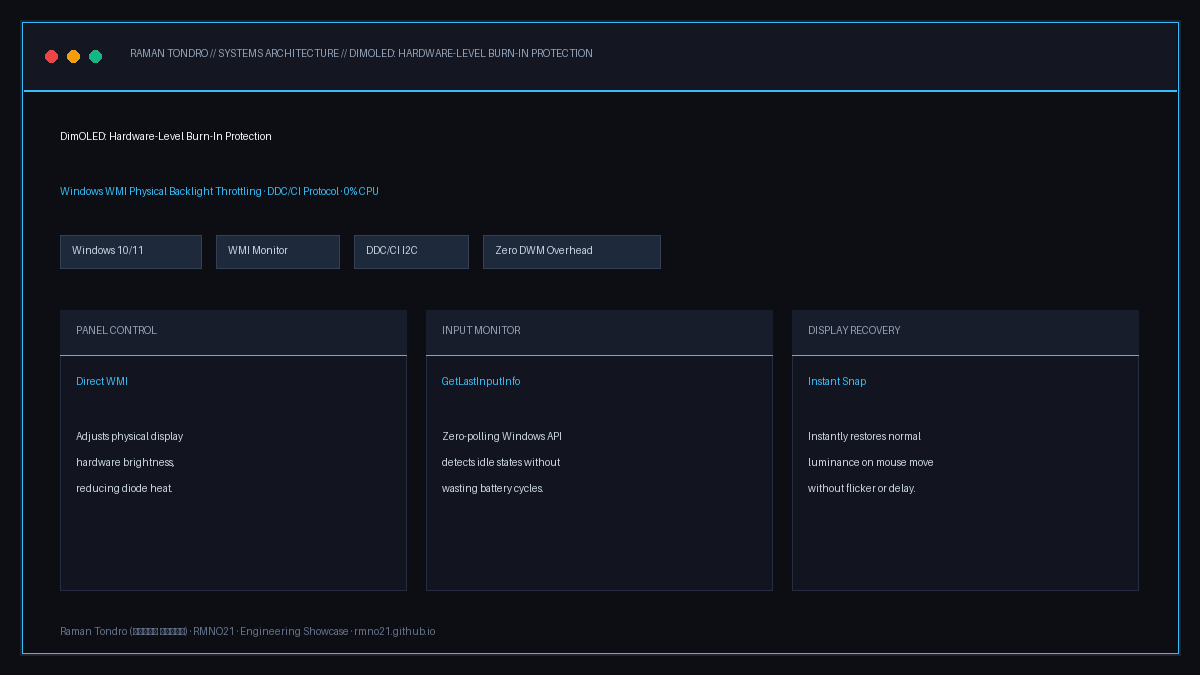

2. The WMI / DDC/CI Hardware Approach

DimOLED communicates directly with the physical display controller. When user inactivity exceeds the configured threshold, it dispatches calls to the underlying hardware driver:

# Native WMI Physical Brightness Call in PowerShell
$wmi = Get-WmiObject -Namespace root/wmi -Class WmiMonitorBrightnessMethods
if ($wmi) {
    # Set brightness physically: Timeout = 0s, TargetBrightness = 10%
    $wmi.WmiSetBrightness(0, 10)
}

# Monitoring user activity via Win32 GetLastInputInfo
Add-Type @'
using System;
using System.Runtime.InteropServices;
public class UserInput {
    [DllImport("user32.dll")]
    public static extern bool GetLastInputInfo(ref LASTINPUTINFO plii);
    public struct LASTINPUTINFO {
        public uint cbSize;
        public uint dwTime;
    }
}
'@

3. Key Capabilities
